KY-3GT-10k0
Gird-tie Three-phase Inverter（10kw）


Products Features

High Efficiency

Max power efficiency 98.5%, smart MPPT Calculation, tracking efficiency reaching 99.99%


Powerful Scalability

Support multi-inverter parallel connection, with powerful scalability


Wide voltage input range

MPPT voltage range from 200v~950v


Safe and Reliable

IP65 protection, various protection function, natural cooling, longer lifetime


Smart and easy to operate

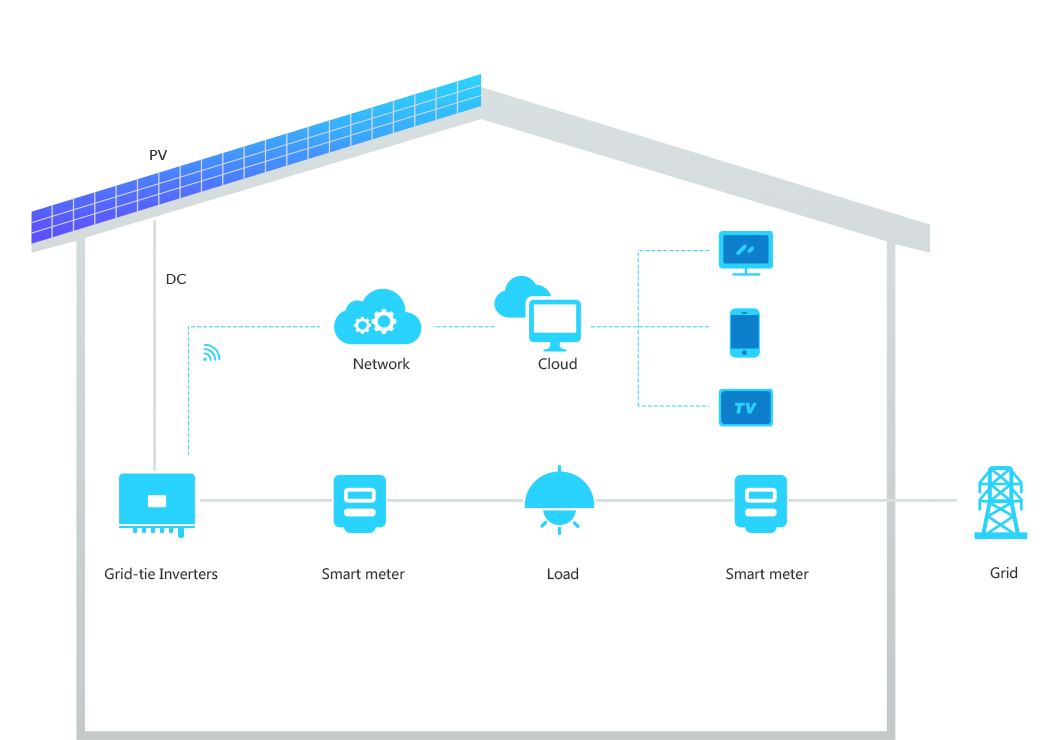

Compact body, easy installation, supporting PC & cell phone remote monitoring


Perfect cooling performance

Supporting full load working under working temperature of 45℃ via new cooling solution
Technical parameter
Parameter KY-3GT-10K0


Efficiency

Maximum efficiency 97.80%


DC side

Maximum input voltage 1000V
Start voltage 180V
Rated input voltage 630 V
MPPT voltage range / rated input voltage 200 V-950 V
Number of MPPT / number of strings 2PCS/(1+1)PCS
Maximum input current (PV1) 12A
Maximum input current (PV2) 12A
Maximum DC short-circuit current of each circuit 15A
Max Inverter Backfeed Current to Array 0A


AC side

Rated output power 10000W
Maximum output power 10000VA
Rated grid voltage / grid voltage range 400 V（230 V）/270 V-480V
Type of power grid 3L/N/PE
Rated output current 14.5A
Maximum output current 15.2A
Frequency / range 500HZ / 60HZ 45HZ-55HZ / 55HZ-65HZ
Total harmonic of output current < 3%
DC component < 0.5% * In
Power factor / range > 0.99 / 0.8 lead - 0.8 lag (adjustable)
Max Output Over Current Protection 33A
Inrush Current(peak and duration) 91A peak@25us


Protect

DC switch Integrate
Over current protection Integrate
Island protection Integrate
Surge protection DC class II / AC class III
over voltage category PV OVC II / AC main OVC III
DC reverse connection protection Integrate
Leakage current protection Integrate
Insulation protection Integrate
Over/undervoltage protection Integrate


Basic parameter information

Dimensions (mm) 505 x 414 x 200
Weight 16Kg
Protection level IP65
Installation mode Wall hanging
Cooling mode Wind cooling
Topological structure No transformer
Anti-islanding protection Frequency shift
Standby consumption <10 W
Condition Outdoor unconditioned
Protective class Class I
Isolation Transformerless
Working temperature -25 ℃ - 60 ℃ ( 45 ℃ derating)
Relative humidity 0~100%
Altitude < 3500 m, over 2000 m derating
Display mode LCD
Communication WIFI / GPRS
AC/DC connection Quick plug type
Warranty 10 years


Standard

Safety standards IEC62109-1/-2, IEC62116, IEC61727
EMC standards IEC 61000-6-2, IEC 61000-6-3
Grid standards AS/NZS 4777.2 NB / T 32004-2018


Others

Country of origin Made in China
Download
file size type download
Koyoe Energy - Warranty commitment 90.1KB PDF
Solar Grid-Connected Inverter-User manual-20230112 2.94MB PDF
Hybrid inverter CE 312.KB PDF
KY-3GT 10K-20K datasheet 206.KB PDF
