KYT6k0-25kwh-I

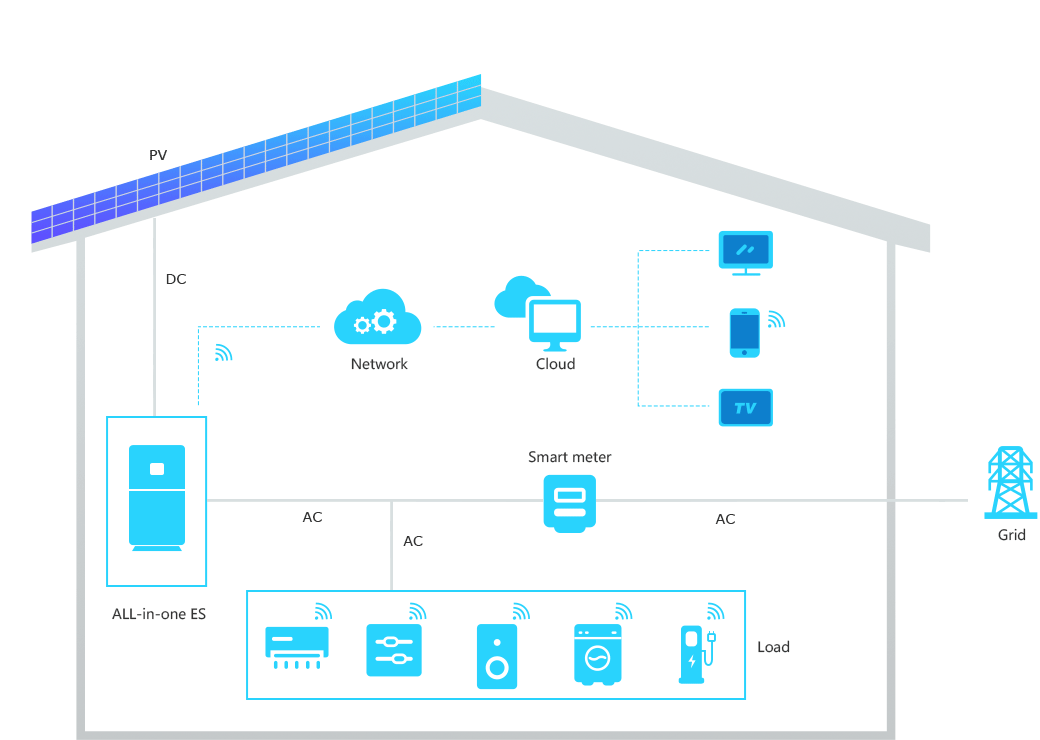

6kw HOUSEHOLD ENERGY STORAGE ALL-IN-ONE(INDOOR)


Product Features

Modular Design

Modular design, plug-in installation, simple appearance design, integration of modern home


Smart Switch

Can be worked under off grid model , support UPS power , on/off gird switch within 10ms


Wide voltage input range

Ultra-wide PV voltage range 180V ~950V, battery Ultra-wide voltage range 180V ~550V


Safe and Reliable

smart air cooling, low temperature rise, long life time, multiple protection functions


Smart and Easy Operation

Support GPRS/WIFI/RS485/USB, LED touch screen, support remote monitoring


High Power Efficiency

High temperature, less load reduction, improve power generation efficiency, DC overdistribution capacity up to 1.3 times
Technical parameter
Parameter KYT6k0-25kwh-I


Efficiency

Max.Efficiency 99.90%
Max.Efficiency >97.80%
Battery.Efficiency >98.10%


Battery Pack

Model KY-51.2V100AH
Serial Number 5
Cell Type Li-ion(LFP)
Battery Capacity(Ah) 100
Storage Capacity(KWh) 25.6
Available Capacity(KWh) 23
Voltage Range(V) 224-288
Cycle Life 7000


PV Input

Max. PV input power(W) 7800
Max. PV input voltage(V) 1000
MPP Operation Voltage Range(V) 180-950
No.of MPPT Trackers 2
No.of Strings Per MPPT Tracker 1/1
Max. PV input current(A) 15/15
Short-circuit current of PV input(A) 18/18


Battery Port

Operating Voltage Range(V) 180-550
Max Charge/Discharge Current(A) 25/30
Communication With BMS CAN


AC Input and Output

Rated Power(W) 6000
Max. Apparent AC Power(VA) 6000
Nominal AC Voltage(Vac) 380,3L/N/PE
AC Power Frequency(Hz) 50/60
Max. AC Output Current(A) 10
Power Factor Range ~1 (Adjustable from 0.8 leading to0.8 lagging)
OutputTHDi(@Nominal Output) <3


Off-Grid AC Output(Back-up ACOutput)

Rated Output Power(W) 6000
Max. Apparent AC Output Power(VA) 6000
Nominal AC Output Voltage(Vac) 380,3L/N/PE
AC Power Frequency(Hz) 50/60
Max. AC Output Current(A) 12


Genaral Data

Operating Temperature Range -20℃ …+60℃(>45℃ derating)
Operating Altitude(m) <3000
Noise(dB) <40
Topology Transformerless
Cooling Method Intelligent Fan
Ingress Protection Rating IP21
Relative Humidity 0-90%, no condensation
Display LED Touching Screen
Communication With Portal RS485 (WiFi/GPRS Optinal)
Communication With Meter RS485
Dimensions (W*D*H)(mm) 600*600*1530


Certification

Safety IEC62109-1/-2
EMC EN61000-6-1/-2/-3,IEC61000
On-Grid standard AS4777.2,NRS097-2-1:2017
Transportation UN38.3
